Proxy to different endpoint

When a real response matches your conditions, fetch the answer from a different URL instead and return that, for example to fall back to a test server when the real endpoint returns a 404.

Proxy to different endpoint swaps one response for another. The real server answers first. If that answer matches your conditions, Mittelware sends a request to a different address you choose and hands your app that response instead.

It's a good fit when you want a second server's answer rather than a body you type in:

  • The real endpoint doesn't exist yet, so it answers 404. Send those calls to a mock server on localhost.
  • A staging endpoint is flaky. When it answers 500, fetch the same thing from a stable copy.
  • You want real, varied data from a test server without writing every body by hand.

NOTE

This action is only available when a rule has at least one response condition, such as Status Code. It needs the real response to have arrived before it can decide. For a rule that looks only at the request, redirecting is Modify Request's job.

How it differs from Modify Request#

Modify Request Proxy to different endpoint
When it acts Before the request is sent After the real response arrived and matched
Does the real server see the request? No: the request is rewritten and goes elsewhere Yes. The real server handles it first, and its answer is then discarded
Conditions it works with Request conditions only Response conditions
Best for Always redirecting a call Redirecting only when the real answer is, say, a 404

That second row matters if the request has side effects: with Proxy to different endpoint, the real server has already done its work.

Set it up#

Under When…, add a response condition, then choose Proxy to different endpoint under Then…. When a rule has a response condition, the Then… list offers these three actions:

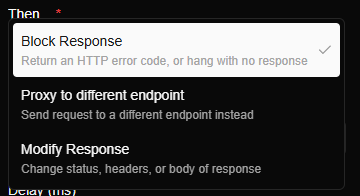

The Then list for a rule with a response condition: Block Response, Proxy to different endpoint and Modify Response, each with a one-line description.
With a response condition, Modify Request and Pause and Review are replaced by Proxy to different endpoint.

Here is a rule that sends any 404 to a server on your laptop:

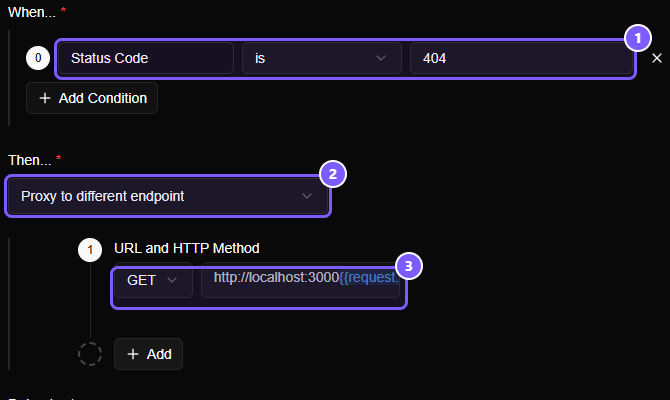

A rule with a Status Code is 404 condition and the action Proxy to different endpoint, with a URL and HTTP Method step holding GET and http://localhost:3000 followed by a template variable.
A response condition, the action, and the address to ask instead.
  1. The condition: Status Code is 404. It only fires when the real server says it can't find the thing.
  2. The action: Proxy to different endpoint.
  3. URL and HTTP Method: the method to use and the address to ask. http://localhost:3000{{request.path}} keeps the path of the original request, so /v1/orders/7 is fetched from your laptop as /v1/orders/7.

The URL is required, and the method starts as GET. The URL can use template variables, including the response ones ({{response.status}} and so on), because the real response is available by then.

Shape the new request#

By default the new request is the original request, re-sent to the new address with the method you chose. Click Add to adjust it.

The Add menu with three choices: Headers, Query Params and Payload.
Three parts of the new request can be changed.
Part What it does
Headers Set or Remove headers on the new request, for example a different Authorization for the test server
Query Params Set query parameters
Payload Replace the body

These work exactly as they do in Modify Request.

What your app sees#

Your app receives whatever the other endpoint returns: its status, its headers and its body. The flow in the list is tagged with a shield and the rule's name, like any other request a rule acted on.

If the other endpoint can't be reached, or the URL doesn't produce a valid address, your app gets a 502 Bad Gateway, and the body says which rule failed and why, for example Couldn't reach http://localhost:3000/… for the rule "…": connection refused. Mittelware waits up to a minute for the other endpoint to start answering.

Good to know#

  • The rule's Delay (ms) field, if set, waits before the new request is made.
  • To answer with a simulated stream rather than another server's answer, use a Stream body in a Modify Response rule.
  • To always send a call to another server, whatever the real one says, Modify Request is simpler, and the original server never sees the request.

Worked example#

Mock an API endpoint before the backend exists ends with this pattern: when the real endpoint answers 404, forward the call to your mock server.
